BioEntry W3 addresses data privacy concerns in biometric devices with its innovative security feature. Template on Mobile (ToM) lets users authenticate access through their mobile devices, ensuring that facial templates are never stored on any external systems.
BioEntry W3
Simple, Durable, Secure
AI-Powered Facial Authentication Device
- BioEntry W3
Simple, Durable, Secure
AI-Powered Facial Authentication Device
- BioEntry W3
Simple, Durable, Secure
AI-Powered Facial Authentication Device
BioEntry W3 is an innovative facial authentication access control device powered by Suprema's advanced AI technology. Its AI processor, optimized with deep-learning (NPU), ensures high accuracy and lightning-fast facial processing speeds. Designed for both durability and resilience, BioEntry W3 withstands external impacts and extreme conditions, all while maintaining a slim and compact profile. Experience the future of security with a device that prioritizes secure private data, elegant simplicity, and lasting durability.
Secure Private Data
The device holds key certifications including ISO/IEC 27001, ISO/IEC 27701, which confirm its top-tier security in data protection.
Simple Design
BioEntry W3 features a minimalist design that is both visually appealing and sophisticated. Its clean lines and straightforward user experience eliminate unnecessary complexity. With its ultra-slim profile, BioEntry W3 seamlessly integrates into any environment, including mullion-type installations on door frames, where it fits perfectly without compromising aesthetics.
-
Mullion type
-
Chic & sleek style
-
Black & Grey color
Durable Build
BioEntry W3 is durable and built to last. It can withstand prolonged use and tough conditions without losing its integrity or functionality.
Vandal Proof
IK08 ( withstanding strong physical force in harsh environments.)
Ingress Proof
IP67 ( Dust & Water-proof / Durable in outdoor)
Unmatched PerformanceThe Future of Security
BioEntry W3 is highly efficient and effective in its functionality. It delivers strong, reliable performance, capable of handling demanding tasks with ease.
AI deep-learning Algorithm
On-Device AI embedded with NPU
Within0.2 seconds
Fastest Face Matching Speed
Max30,000
Face template stored
Enhanced User Experience
- LED Screen Authentication: Verify identity via LED screen without exposing registered personal photos through an LCD, providing enhanced privacy protection.
Multi-Credential Support
- Facial Authentication: Provides fast and accurate facial Authentication technology.
- Mobile Access: Allows convenient access via smartphone.
- Template on Mobile (ToM): Safely stores facial data on mobile devices for secure Authentication.
- Various RFID Card Support: Supports a wide range of RFID cards for convenient use.
Innovative Facial Authentication Performance
- FAS Algorithm Innovation: Delivers the best-in-class facial Authentication algorithm.
- Advanced AI Technology: Enhances accuracy through AI training with over 500,000 facial Authentication data points.
- Core Technology Optimization : Achieving top performance through the optimization of cameras and hardware for precise facial authentication data, along with software and proprietary algorithm optimization for data analysis.
High Quality & Over 20 Years of Trust
- High Quality: Guaranteed superior quality
- Over 20 Years of Trust: Products backed by more than 20 years of reliability
- R&D and Made by Suprema in Korea
Specification
Scroll left/right
Scroll left/right
Model Name
Credential
Biometrics
RF Option
RF read range 2)
Mobile Card
Protections
IP rating
IK rating
Face
Authentication Distance
Authentication Height
Matching speed
Live Face Detection
Capacity
Max. User
Max. Credential (1:N)
Max. Credential (1:1)
Max. Text Log
Max. Image Log
General
CPU
Memory
Crypto Chip
Display
Camera
LED
Sound
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Weight
Dimension (WxHxD, mm)
Certifications
Interface
Ethernet
RS-485
RS-485 Communication Protocol
Wiegand
Input
Relay
USB
USB expansion port
PoE
RTSP
(Real Time Streaming Protocol)Tamper
Electrical
Power
BEW3-DB
Face
125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa
MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm
NFC, BLE
IP67
IK08
0.3 ~ 1.0 m
1.4 ~ 1.9 m
Within 0.2 seconds
Supported
100,0004)
Face: 30,000
Card: 100,000
Face: 30,000
Card: 100,000
1,000,000
10,000
1.5 GHz Quad Core
16 GB Flash + 2 GB RAM
Supported
1.3” PMOLED
IR: 2M pixels
Visual: 2M pixels
Multi-color
16 bit
-20 °C ~ 50 °C
-40 °C ~ 70 °C
0 % ~ 80 %, non-condensing
0 % ~ 90 %, non-condensing
Device: 283 g

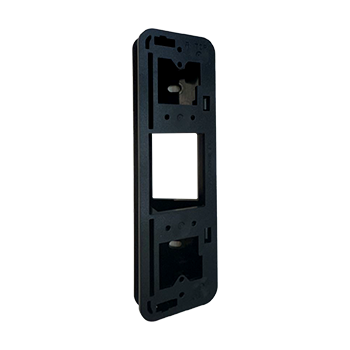

Bracket: 36 g
50 x 160 x 34.15 (mm)
CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE, EAC, TELEC
Supported (10/100 Mbps, auto MDI/MDI-X)
1 ch Master / Slave (Selectable)
OSDP V2 compliant
1 ch Input and 1 ch Output
3 ch Inputs
1 Relay
USB 2.0 (Type C), only FW-Upgrade
Supported
Not supported
Supported
Supported
Voltage: 12 Vdc, Current: Max. 1.0 A
Voltage: 24 Vdc, Current: Max. 0.6 A
BEW3-APB
Face
125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos
MIFARE/DESFire/EM/iCLASS: 50 mm, FeliCa/HID Prox: 30 mm
NFC, BLE
IP67
IK08
0.3 ~ 1.0 m
1.4 ~ 1.9 m
Within 0.2 seconds
Supported
100,0004)
Face: 30,000
Card: 100,000
Face: 30,000
Card: 100,000
1,000,000
10,000
1.5 GHz Quad Core
16 GB Flash + 2 GB RAM
Supported
1.3” PMOLED
IR: 2M pixels
Visual: 2M pixels
Multi-color
16 bit
-20 °C ~ 50 °C
-40 °C ~ 70 °C
0 % ~ 80 %, non-condensing
0 % ~ 90 %, non-condensing
Device: 291 g
Bracket: 36 g
50 x 160 x 34.15 (mm)
CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE, EAC, TELEC
Supported (10/100 Mbps, auto MDI/MDI-X)
1 ch Master / Slave (Selectable)
OSDP V2 compliant
1 ch Input and 1 ch Output
3 ch Inputs
1 Relay
USB 2.0 (Type C), only FW-Upgrade
Supported
Supported (IEEE 802.3at compliant)
Supported
Supported
Voltage: 12 Vdc, Current: Max. 1.0 A
Voltage: 24 Vdc, Current: Max. 0.6 A
